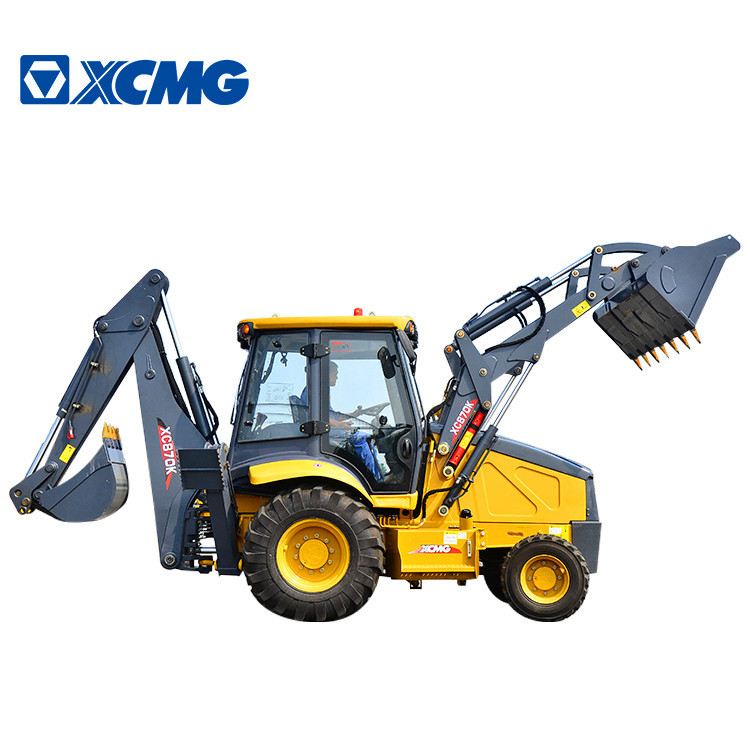

XCMG XC870K 2.5ton 4x4 Backhoe Loader for sale
XCMG back hoe loader XC870K is upgraded on the basis of the mature equipment and technical performances of present products, including the upgrade of engine emission, lightweight upgrade of structural parts, and of working device parameters, to further improve the comfort, safety, maintainability, reliability, supportability, and economy of the product.
1. Ensure strong soil holding capacity.
2. Features high operation efficiency, with the breakout force up to 63kN.
3. Features good levelness of bucket and rapid operations.
4. The ultra-high discharge height (2770mm) and ultra-high breakout force (66kN) lead the like products.
5. Features large space, good sound and heat insulation, and good shock absorption.
SPECIFICATION
|
Description |
Parameter Value |
Unit |
|
|
Chassis type |
integrated |
||
|
Drive style |
4 drive/2 drive |
||
|
Digging working device |
middle |
||
|
Outline dimensions(L×W×H) |
7440×2350×3450 |
mm |
|
|
Total weight |
7600 |
kg |
|
|
Max. travel speed |
≥40 |
km/h |
|
|
Wheelbase |
2180 |
mm |
|
|
Engine |
Power |
70-82 |
kw |
|
Cummins/Deutz |
|||
|
Loading device |
Bucket capacity |
1 |
m3 |
|
Rated load |
2500 |
kg |
|
|
Max. breakout |
66 |
kN |
|
|
Max. discharge height |
2770 |
mm |
|
|
Max. discharge distance |
755 |
mm |
|
|
System pressure |
24 |
Mpa |
|
|
Digging device |
Bucket capacity |
0.3 |
m3 |
|
Max. digging radius |
5460 |
mm |
|
|
Max. digging depth |
4425 |
mm |
|
|
Max. digging force |
63 |
kN |
|
|
System pressure |
24 |
Mpa |
